Add an ExportInfo component to your Unity scene to generate a new web project from a template, link to an existing web project that you want to export to, set up dependencies to other libraries and packages and to deploy your project.
By default, your scene is exported on save. This setting can be changed by disabling Auto Export in the ExportInfo component.
To export meshes, materials, animations, textures (...) create a new GameObject in your hierarchy and add a GltfObject component to it. This is the root of a new glTF file. It will be exported whenever you make a change to the scene and save.
Only scripts and data on and inside those root objects is exported. Scripts and data outside of them are not exported.
Add a cube as a child of your root object and save your scene. Note that the output assets/ folder (see ) now contains a new .glb file with the same name as your root GameObject.
You can enable the Smart Export setting (via Edit/Project Settings/Needle ) to only export when a change in this object's hierarchy is detected.
:::details How to prevent specific objects from being exported Objects with the EditorOnly tag will be ignored on export including their child hierarchy.
Be aware that this is preferred over disabling objects as disabled will still get exported in case they're turned on later. :::
If you want to split up your application into multiple levels or scenes then you can simply use the SceneSwitcher component. You can then structure your application into multiple scenes or prefabs and add them to the SceneSwitcher array to be loaded and unloaded at runtime. This is a great way to avoid having to load all your content upfront and to keep loading times small (for example it is what we did on by separating each section of your website into its own scene and only loading them when necessary)
Max. 50 MB export size uncompressed (usually ends up ~10-20 MB compressed)
Max. 500k vertices (less if you target mobile VR as well)
Max. 4x 2k lightmaps
You can split up scenes and prefabs into multiple glTF files, and then load those on demand (only when needed). This keeps loading performance fast and file size small. See the .
The scene complexity here is recommended to ensure good performance across a range of web-capable devices and bandwidths. There's no technical limitation to this beyond the capabilities of your device.
Exporting Prefabs works with nesting too: a component in a Prefab can reference another Prefab which will then also be exported. This mechanism allows for composing scenes to be as lightweight as possible and loading the most important content first and defer loading of additional content.
Similar to Prefab assets, you can reference other Scene assets.
To get started, create a component in Unity with a UnityEditor.SceneAsset field and add it to one of your GameObjects inside a GltfObject. The referenced scene will now be exported as a separate glTF file and can be loaded/deserialized as a AssetReference from TypeScript.
You can keep working inside a referenced scene and still update your main exporter scene/website. On scene save or play mode change we will detect if the current scene is being used by your currently running server and then trigger a re-export for only that glb. (This check is done by name - if a glb inside your <web_project>/assets/ folder exists, it is exported again and the main scene reloads it.)
If you want to reference and load a prefab from one of your scripts you can declare a AssetReference type.
Here is a minimal example:
Needle Engine supports a considerable and powerful subset of Unity's animation features:
Timeline incl. activation tracks, animation tracks, track offsets
Animator incl. top-level state transitions
Blend trees are currently not supported.
Sub state machines are currently not supported.
AnimationClips incl. Loop modes
Procedural Animations can be created via scripting
One current limitation is that materials won't be duplicated on export — if you want to animate the same material with different colors, for example, you currently need to split the material in two.
The Unity skybox and custom reflection (if any) are baked into a texture on export and automatically exported inside the NEEDLE_lightmaps extension.

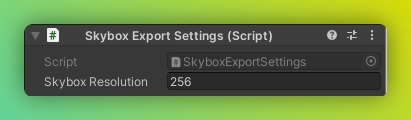

To change the skybox resolution you can add a SkyboxExportSettings component to your scene.

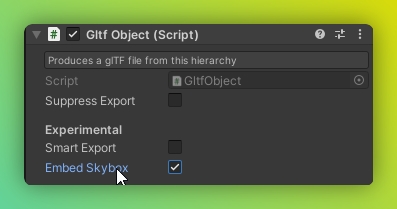

If you don't want to skybox to be exported at all in a glb file you can untick the Embed Skybox option on your GltfObject component
By default, materials are converted into glTF materials on export. glTF supports a physically based material model and has a number of extensions that help to represent complex materials.
For full control over what gets exported, it's highly recommended to use the glTF materials provided by UnityGltf:
PBRGraph
UnlitGraph
::: tip When in doubt, use the PBRGraph shader The PBRGraph material has a lot of features, way more than Standard or URP/Lit. These include advanced features like refraction, iridescence, sheen, and more. Additionally, materials using PBRGraph and UnlitGraph are exported as-is, with no conversion necessary. :::
Materials that can be converted out-of-the-box:
BiRP/Standard
BiRP/Autodesk Interactive
BiRP/Unlit
URP/Lit
URP/Unlit
To export custom unlit shaders (for example made with ShaderGraph), add an ExportShader Asset Label to the shader you want to export. Asset Labels can be seen at the bottom of the Inspector window.
We currently only support custom Unlit shaders — Lit shader conversion is not officially supported.
Custom Lit Shaders are currently experimental. Not all rendering modes are supported.
Shadow receiving on custom shaders is not supported
Skinned meshes with custom shaders are not supported
As there's multiple coordinate system changes when going from Unity to three.js and glTF, there might be some changes necessary to get advanced effects to work. We try to convert data on export but may not catch all cases where conversions are necessary.
UV coordinates in Unity start at the bottom left; in glTF they start at the top left.
X axis values are flipped in glTF compared to Unity. This is a variant of a left-handed to right-handed coordinate system change. Data used in shaders may need to be flipped on X to display correctly.
::: note Not part of the glTF specification Note that Custom Shaders aren't officially part of the glTF specification. Our implementation of custom shaders uses an extension called KHR_techniques_webgl, that stores the WebGL shader code directly in the glTF file. The resulting assets will work in viewers based on Needle Engine, but may not display correctly in other viewers. :::

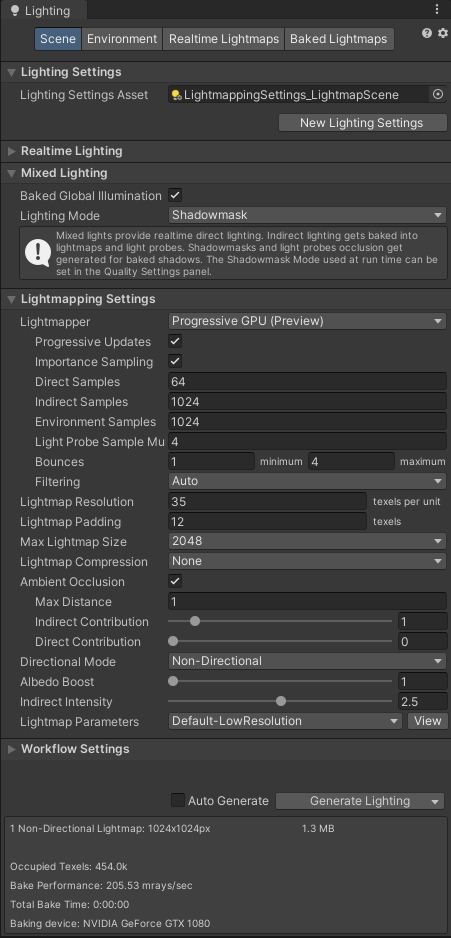

When working on multiple scenes, disable "Auto Generate" and bake lightmaps explicitly. Otherwise, Unity will discard temporary lightmaps on scene change.
Lightmap Encoding: Normal Quality (adjust in Project Settings > Player)
Progressive GPU (faster and usually accurate enough for small scenes)
Non-Directional Lightmaps
Max Lightmap Size 2k (you can go higher, but expect large files)
Max 4x 2k lightmaps per scene (you can go higher, but expect large files)
Compress Lightmaps OFF (increases quality; otherwise will be compressed again at export time)
There's no 100% mapping between how Unity handles lights and environment and how three.js handle that. For example, Unity has entirely separate code paths for lightmapped and non-lightmapped objects (lightmapped objects don't receive ambient light since that is already baked into their maps), and three.js doesn't distinguish in that way.

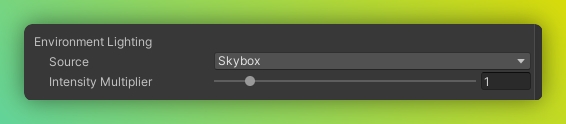

This means that to get best results, we currently recommend specific settings if you're mixing baked and non-baked objects in a scene:

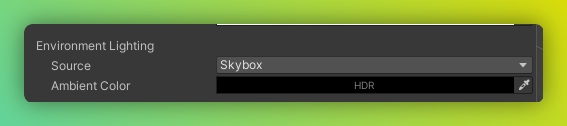

If you have no baked objects in your scene, then the following settings should also yield correct results:
Prefabs can be exported as invidual glTF files and instantiated at runtime. To export a prefab as glTF just reference a prefab asset (from the project browser and not in the scene) .

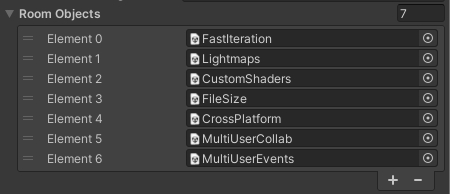

As an example on each section is setup as a separate scene and on export packed into multiple glb files that we load on demand:
@
Needle Engine is one of the first to support the new . This means that almost all properties, including script variables, are animatable.
Other materials are converted using a propery name heuristic. That means that depending on what property names your materials and shaders use, you might want to either refactor your custom shader's properties to use the property names of either URP/Lit or PBRGraph, or export the material as .
To export lightmaps simply in Unity. Lightmaps will be automatically exported.
2021.3+
2020.3+
